9 CDOM harmonization process

Following the completion of the {dataRetrieval} download process described previously, the pipeline contains raw WQP data for each parameter of interest. Before we harmonize each parameter we run through a series of universal “pre-harmonization” steps, which ensure that the datasets are appropriately formatted when entering their harmonization routines.

The text below first walks through the pre-harmonization steps for the colored dissolved organic matter (CDOM) dataset and then delves into the specifics of the harmonization process.

9.1 Pre-harmonization of the raw CDOM WQP dataset

At the start of the pre-harmonization process the raw CDOM WQP dataset contains 186.4 thousand rows.

Bar plot showing the row count update for the current harmonization step.

9.1.1 Missing results

Next, records that have missing data are dropped from the dataset. Several criteria are used when checking for missing data. If any of the below criteria are met the row is flagged as missing:

1. Both the result column and detection limit column had NA data
2. Result, result unit, activity comment, laboratory comment, and result comment columns are all NA
3. The result comment column contains any user-provided text indicating a missing value. This currently includes: analysis lost, not analyzed, not recorded, not collected, or no measurement taken

473 rows are dropped, resulting in a final count of 185.9 thousand.

Bar plot showing the row count update for the current harmonization step.

9.1.2 Filter status

The final step in pre-harmonization is to filter the ResultStatusIdentifier column to include only the following statuses:

• "Accepted"
• "Final"
• "Historical"
• "Validated"
• "Preliminary"
• NA

These statuses generally indicate a reliable result was obtained, however we also include NA in an effort to be conservative. More specifically, when making decisions for this and other columns we occasionally retain NA values if removing the records would otherwise drop 10% or more of the available data.

This step removes 0 rows of data, leaving it with 185.9 thousand rows remaining.

Bar plot showing the row count update for the current harmonization step.

9.2 Harmonization-ready CDOM dataset

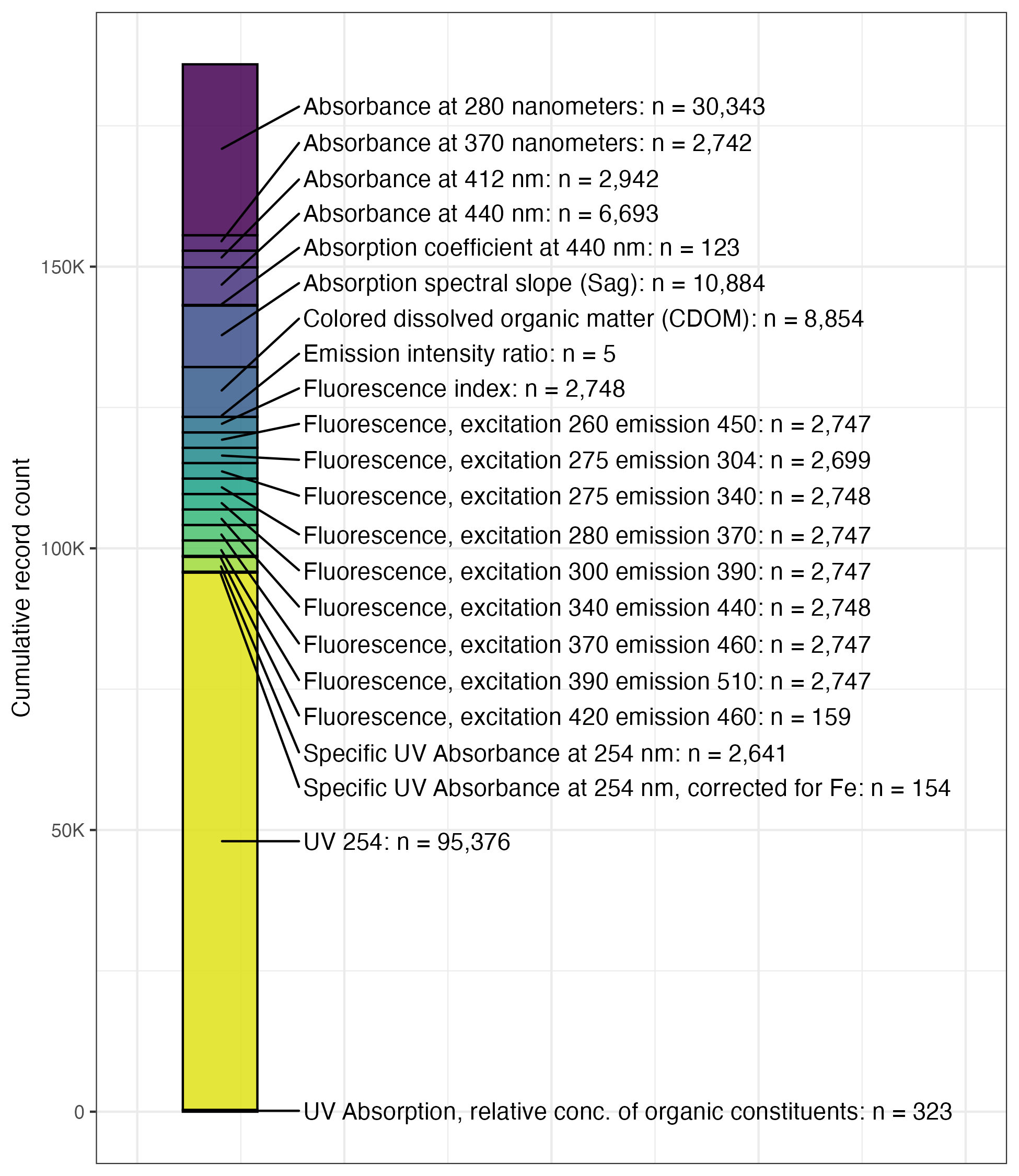

Once ready for harmonization, the CDOM WQP dataset contains the following user-defined CharacteristicNames: Absorbance at 280 nanometers, Absorbance at 280 nm, Absorbance at 370 nanometers, Absorbance at 412 nm, Absorbance at 440 nm, Absorption coefficient at 440 nm, Absorption spectral slope (Sag), Colored dissolved organic matter (CDOM), Emission intensity ratio, Fluorescence index, Fluorescence, excitation 260 emission 450, Fluorescence, excitation 275 emission 304, Fluorescence, excitation 275 emission 340, Fluorescence, excitation 280 emission 370, Fluorescence, excitation 300 emission 390, Fluorescence, excitation 340 emission 440, Fluorescence, excitation 370 emission 460, Fluorescence, excitation 390 emission 510, Fluorescence, excitation 420 emission 460, Specific UV Absorbance at 254 nm, Specific UV Absorbance at 254 nm, corrected for Fe, UV 254, UV Absorption, relative conc. of organic constituents.

These CharacteristicNames are chosen in order to select for only those measurements that pertain to CDOM. We selected them by reviewing options in the Characteristics field of the Water Quality Portal Filter Results page.

9.2.1 Filter media and fractions, categorize parameters

We next ensure that the media type for all CDOM data is "Surface Water", "Water", "Estuary", or NA. Any records not meeting these criteria are dropped.

We then assign each record to one of the parameter values in the table below, based on its values for CharacteristicName, ResultAnalyticalMethod.MethodName, and ResultMeasure.MeasureUnitCode. This helps us to group comparable measurements throughout the rest of the process and generally simplify the way the dataset is organized:

Parameter	Definition
Absorbance at 254 nm	CharacteristicName is either “Specific UV Absorbance at 254 nm” or “UV 254” and ResultMeasure.MeasureUnitCode is not “L/mg-cm” or “L/mgDOC*m”. Alternatively, CharacteristicName is “UV Absorption, relative conc. of organic constituents” and ResultAnalyticalMethod.MethodIdentifier is “5910-B”
Absorbance at 280 nm	CharacteristicName is “Absorbance at 280 nanometers”
Absorbance at 370 nm	CharacteristicName is “Absorbance at 370 nanometers”
Absorbance at 412 nm	CharacteristicName is “Absorbance at 412 nm”
Absorbance at 440 nm	CharacteristicName is “Absorption coefficient at 440 nm” OR “Absorbance at 440 nm” OR CharacteristicName is “Colored dissolved organic matter (CDOM)” and ResultAnalyticalMethod.MethodName is “CDOM absorption (440nm)”
Absorption spectral slope, 275 to 295 nm	CharacteristicName is “Absorption spectral slope (Sag)” and USGSPCode is 32300
Absorption spectral slope, 290 to 350 nm	CharacteristicName is “Absorption spectral slope (Sag)” and USGSPCode is 32301
Absorption spectral slope, 350 to 400 nm	CharacteristicName is “Absorption spectral slope (Sag)” and USGSPCode is 32302
Absorption spectral slope, 400 to 500 nm	ResultAnalyticalMethod.MethodName is “Slope Of CDOM Absorption Coefficient Spectrum (400 To 500 Nm)” and StatisticalBaseCode is “Slope”
Absorption spectral slope, 412 to 600 nm	CharacteristicName is “Absorption spectral slope (Sag)” and USGSPCode is 32331
Absorption spectral slope, 412 to 676 nm	CharacteristicName is “Absorption spectral slope (Sag)” and USGSPCode is 32303
FDOM	CharacteristicName is “Colored dissolved organic matter (CDOM)” AND ResultAnalyticalMethod.MethodName is NA or mentions a fluorometer AND ResultMeasure.MeasureUnitCode is one of “RFU”, “ug/l QSE”, “mg/l”, or “ug/L”. Alternatively, CharacteristicName is formatted like “Fluorescence, excitation 275 emission 304” but exact numbers will vary.
Fluorescence Index	CharacteristicName is “Fluorescence index”
SUVA	ResultMeasure.MeasureUnitCode is “L/mg-cm” or “L/mgDOC*m” OR CharacteristicName is “UV Absorption, relative conc. of organic constituents” and ResultAnalyticalMethod.MethodIdentifier is “415.3”

Records that do not meet the criteria of one of the parameter entries above are dropped (n = 1,113). A summary of the types of dropped records and their row counts is below:

Code

param_drop_record %>%
kable() %>%
  kable_paper() %>%
  scroll_box(width = "750px", height = "500px")

CharacteristicName	ResultAnalyticalMethod.MethodName	USGSPCode	ResultAnalyticalMethod.MethodIdentifier	ResultAnalyticalMethod.MethodIdentifierContext	ResultMeasure.MeasureUnitCode	ResultSampleFractionText	n
Colored dissolved organic matter (CDOM)	9222 B ~ Standard Total Coliform Membrane Filter Procedure	NA	9222B	APHA	ug/L	NA	7
Colored dissolved organic matter (CDOM)	CHROMOPHORIC DISSOLVED ORGANIC MATTER	NA	NASA-CDOM	21VASWCB	None	Dissolved	839
Colored dissolved organic matter (CDOM)	NASA/TM-2003-211621/Rev4-Vol.IV	NA	NASA/TM-2003-211621	RTI	m	NA	96
Colored dissolved organic matter (CDOM)	NA	32295	NA	NA	NA	Dissolved	2
Colored dissolved organic matter (CDOM)	NA	32322	NA	NA	NA	Total	2
Colored dissolved organic matter (CDOM)	NA	NA	NA	NA	m	NA	130
Emission intensity ratio	Fluorescence scan, 250-620 nm	32347	FL020	USGS	None	Dissolved	5
UV Absorption, relative conc. of organic constituents	UNKNOWN	NA	UNKNOWN	AZDEQ_SW	units/cm	Total	32

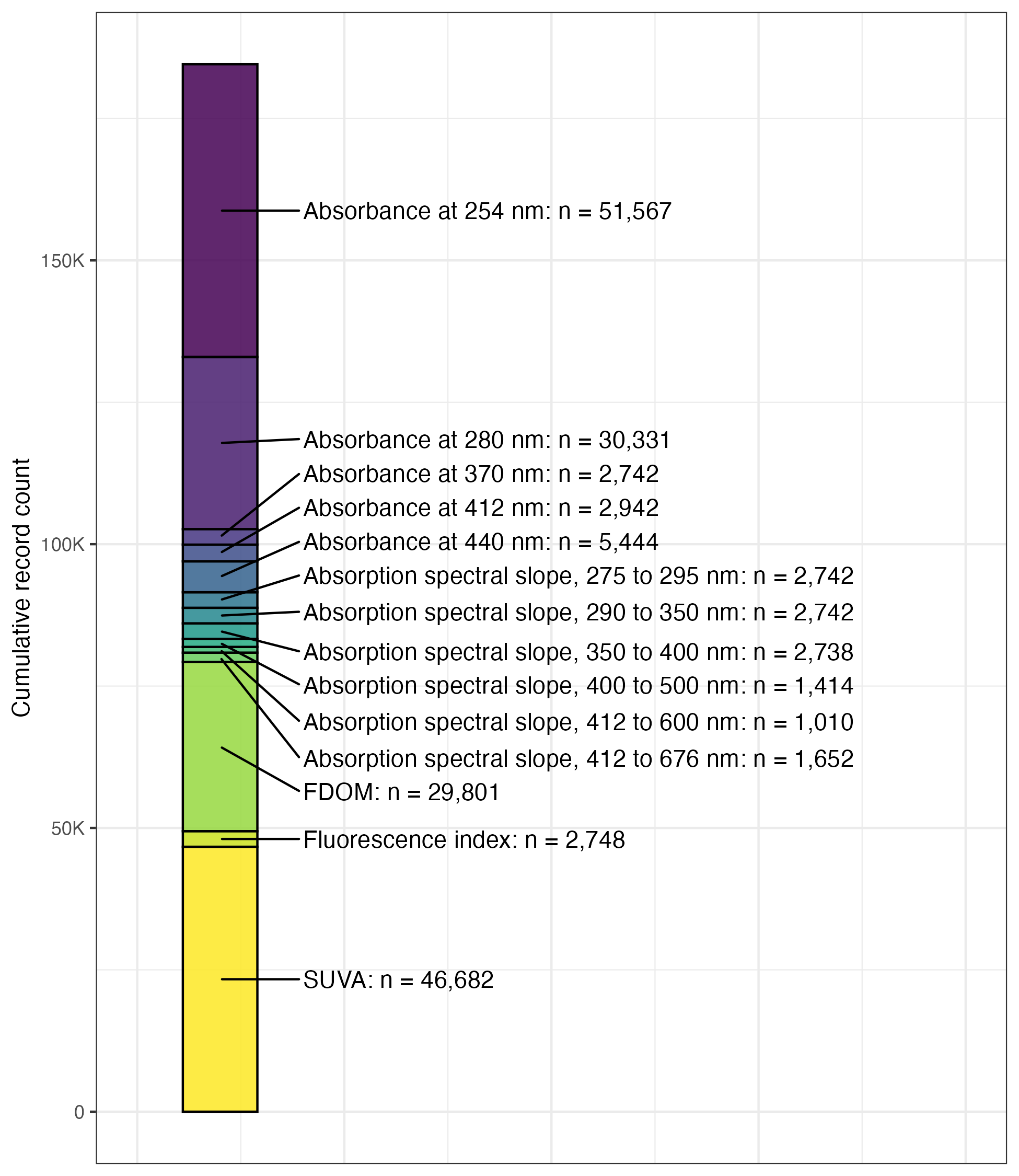

Below is a stacked barplot of the dataset organized by the new parameter column:

1.4 thousand rows are removed. The final row count after this is 184.6 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.2 Document and remove fails

In this step we filter out records based on indications that they have failed data quality assurance or quality control for some reason given by the data provider (these instances are referred to here as “failures”).

After reviewing the contents of the ActivityCommentText, ResultLaboratoryCommentText, ResultCommentText, ResultDetectionConditionText, and ResultMeasureValue_original columns, we developed a list of terms that captured the majority of instances where records had failures or unacceptable measurements. (Note: ResultMeasureValue_original is a duplicate, character version of the ResultMeasureValue column that we use as a reference for the column’s contents before it was converted to a numeric type.) We found the phrasing to be consistent across columns, so we searched for the same (case agnostic) text in all four locations. The terms are: “beyond accept”, “cancelled”, “contaminat”, “error”, “fail”, “improper”, “interference”, “invalid”, “no result”, “no test”, “not accept”, “outside of accept”, “problem”, “questionable”, “suspect”, “unable”, “violation”, “reject”, “no data”, “time exceed”, “value extrapolated”, “exceeds”, “biased”, “parameter not required”, “not visited”, “warm”, “broken”.

Below are pie charts that break down the number of failure detections by column. Note that the plotting below is automated so if one or more of the columns listed above are not plotted, this indicates that the column(s) did not return any matches for the failure phrases. Also note that a single record can contain multiple failure phrases; therefore, failure phrases are not mutually exclusive.

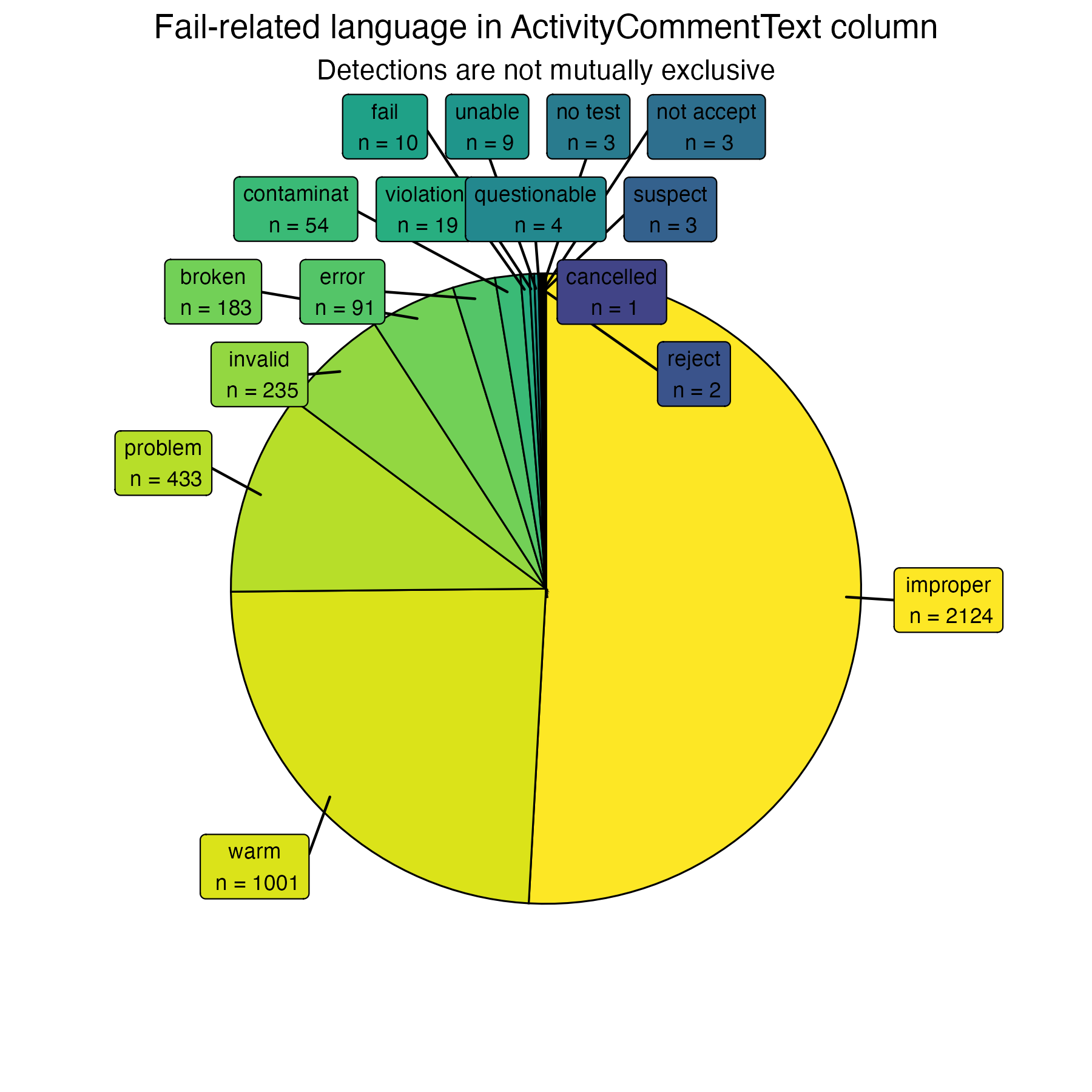

9.2.2.1 ActivityCommentText fail detects

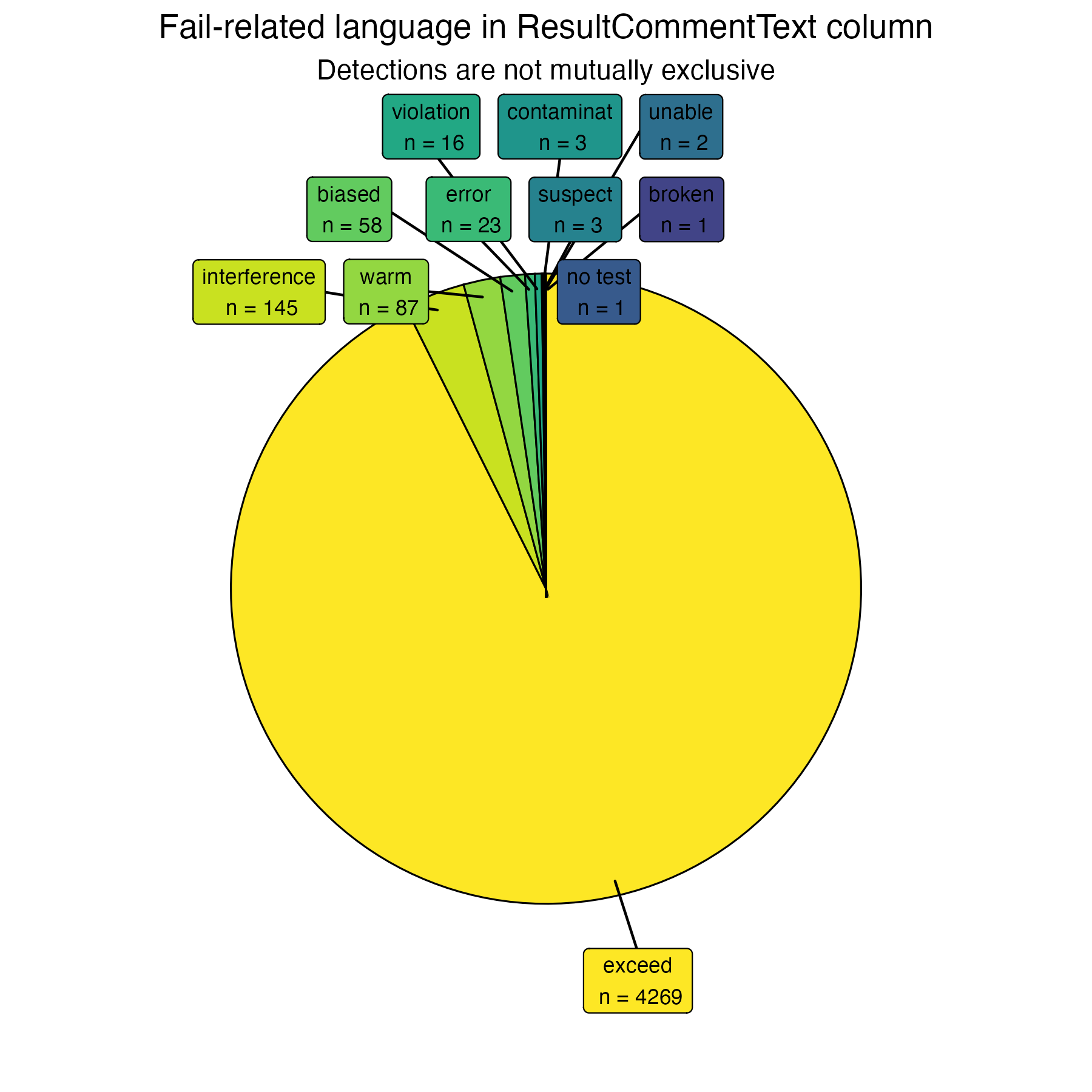

9.2.2.2 ResultCommentText fail detects

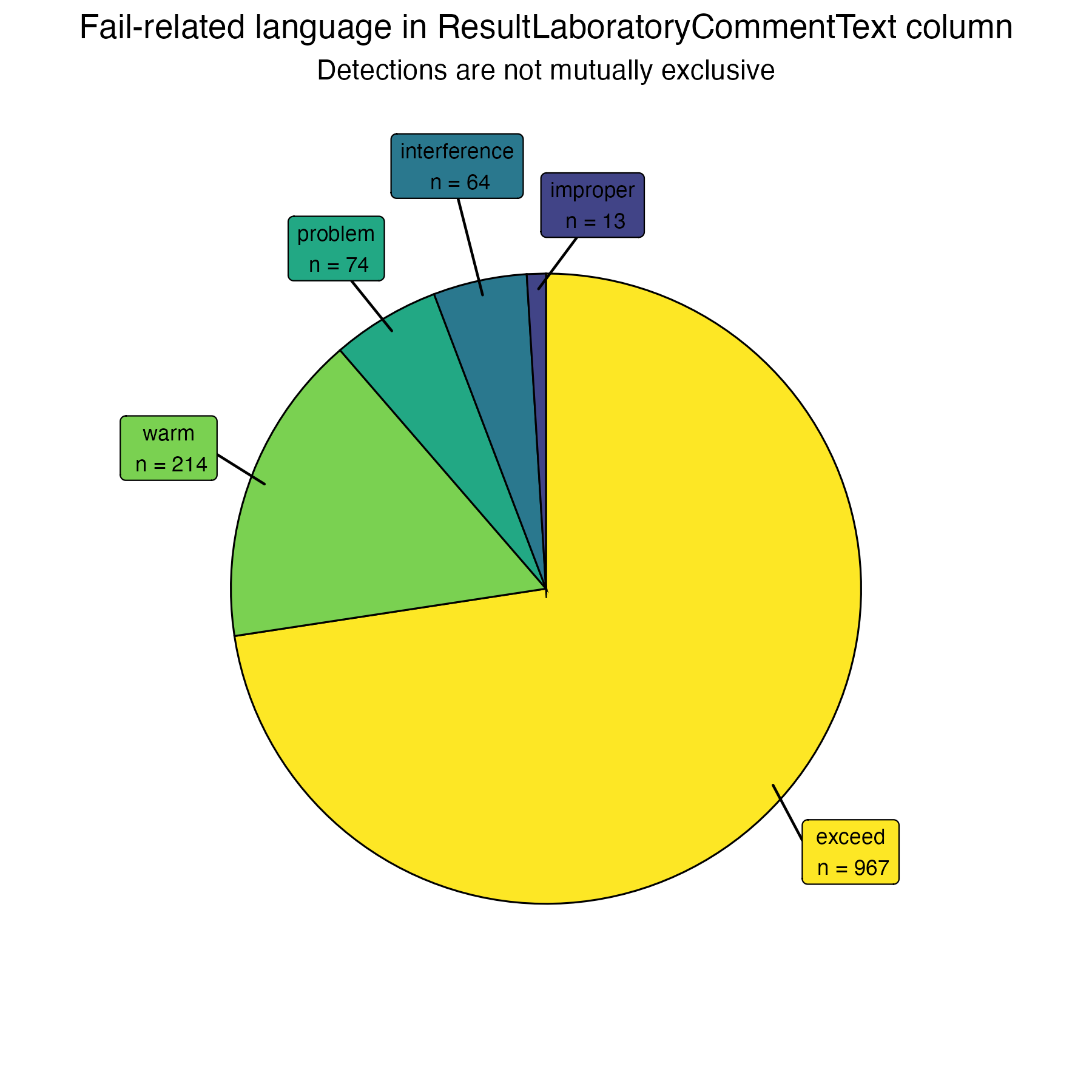

9.2.2.3 ResultLaboratoryCommentText fail detects

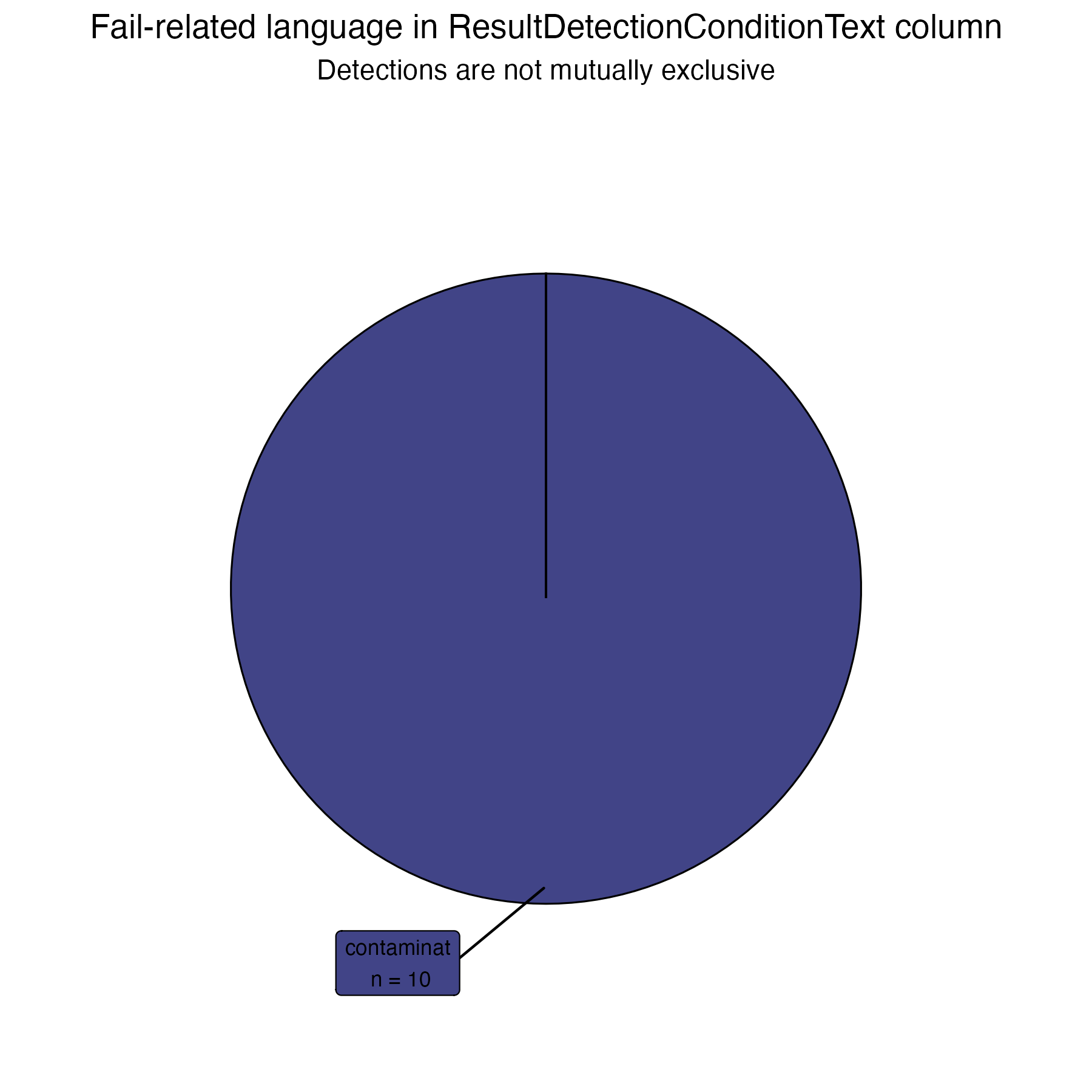

9.2.2.4 ResultDetectionConditionText fail detects

9.2.2.5 ResultMeasureValue_original fail detects

8806 rows are removed after detecting failure-related phrases and 175.7 thousand rows remain.

Bar plot showing the row count update for the current harmonization step.

9.2.3 Clean MDLs

In this step method detection limits (MDLs) are used to clean up the reported values. When a numeric value is missing for the data record (i.e., NA or text that became NA during an as.numeric call) we check for non-detect language in the ResultLaboratoryCommentText, ResultCommentText, ResultDetectionConditionText, and ResultMeasureValue columns. This language can be "non-detect", "not detect", "non detect", "undetect", or "below".

If non-detect language exists then we use the DetectionQuantitationLimitMeasure.MeasureValue column for the MDL. Otherwise if there is a < and a number in the ResultMeasureValue column, we use that number instead.

We then use a random number between 0 and 0.5 * MDL as the record’s value moving forward.

We produce a new column, mdl_flag, from the MDL cleaning process. Records where no MDL-based adjustment was made and which are at or above the MDL are assigned a 0. Records with corrected values based on the MDL method are assigned a 1. Finally, records where no MDL-based adjustment was made and which contain a numeric value below the provided MDL are assigned a 2.

This should not result in a change in rows, but we still check: 0 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.4 Clean approximate values

Cleaning approximate values involves a similar process as for MDL cleaning. We flag “approximated” values in the dataset. The ResultMeasureValue column gets checked for all three of the following conditions:

1. Numeric-only version of the column is still NA after MDL cleaning
2. The original column text contained a number
3. Any of ResultLaboratoryCommentText, ResultCommentText, or ResultDetectionConditionText match this regular expression, ignoring case: "result approx|RESULT IS APPROX|value approx"

We then use the approximate value as the record’s value moving forward.

Records with corrected values based on the above method are noted with a 1 in the approx_flag column. Note, however, that occasionally approximate language will be used in a record but not changed or flagged. This occurs when the language is used in a comment-related column and not the result column itself, meaning that there is a usable numeric value provided (and thus doesn’t need correction).

This should not result in a change in rows, but we still check: 0 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.5 Clean values with “greater than” data

The next step is similar to the MDL and approximate value cleaning processes, and follows the approximate cleaning process most closely. The goal is to clean up values that were entered as “greater than” some value. The ResultMeasureValue column gets checked for all three of the following conditions:

1. Numeric-only version of the column is still NA after MDL & approximate cleaning
2. The original column text contained a number
3. The original column text contained a >

We then use the “greater than” value (without >) as the record’s value moving forward.

Records with corrected values based on the above method are noted with a 1 in the greater_flag column.

This should not result in a change in rows, but we still check: 0 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.6 Drop unresolved NA measurements

The goal of the preceding three steps was to prevent records with seemingly missing measurement data from being dropped if there was still a chance of recovering a usable value. At this point we’ve finished with that process and we proceed to check for remaining records with NA values in their harmonized_value column. If they exist, they are dropped. We also filter out any negative values in the dataset at this point because CDOM cannot be negative. The exception to this is for the “Absorption spectral slope” parameters, which we take the absolute value of instead of removing.

6 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.7 Harmonize record units

The next step in CDOM harmonization is converting the units of WQP records. Records that don’t make sense for CDOM or can’t be converted to a standardized unit dropped. We standardize units to “AU/m” unless the parameter is “SUVA” (“L/mgDOC*m”), “FDOM” (“RFU”, “RU”, “ug/l QSE”), “Fluorescence index” (“None”), or one of the “Absorption spectral slope” variants (“nm-1”). We use the unit conversion table below for this.

ResultMeasure.MeasureUnitCode	conversion
AU/cm	100
units/cm	100
#/cm	100
cm	100
None	1
nm	100
NA	1
m	1
L/mg-cm	100
L/mgDOC*m	1
mg/l	1000
ug/L	1
ug/l QSE	1
RFU	1
RU	1
per m	1
nm-1	1

Note that in the table above “nm” units are given a conversion factor of 100. This is because we assessed that these records are likely intended to use cm-1 units. For example: The DetectionQuantitationLimitMeasure.MeasureUnitCode for these records is “units/cm”, their measured values fall within expected ranges for natural waters for absorbance at 254 nm reported in cm-1 units, and the detection limit listed as 0.005 also aligns with cm-1 measurements. Additionally the table lists “None” with a conversion factor of 1, which allows it to be retained as-is for records with the “Fluorescence index” parameter. Records with parameter variants of “Absorption spectral slope” are often provided in the WQP with units of “None” as well, but we convert these to “nm-1” in this step.

Below is a pie chart that breaks down the different unit codes that were dropped in the unit harmonization process, and how many records were lost with each code. (Note that if there is no pie chart below that is because no unit codes were dropped).

0 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

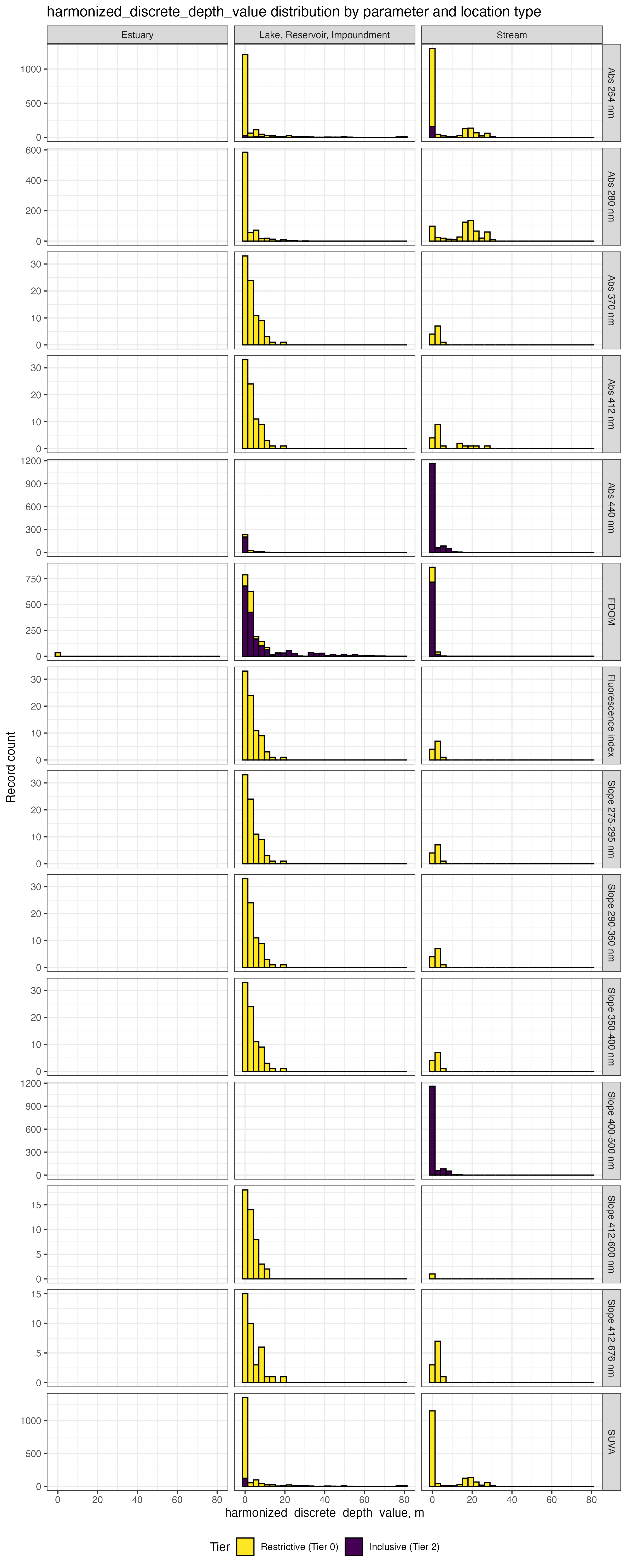

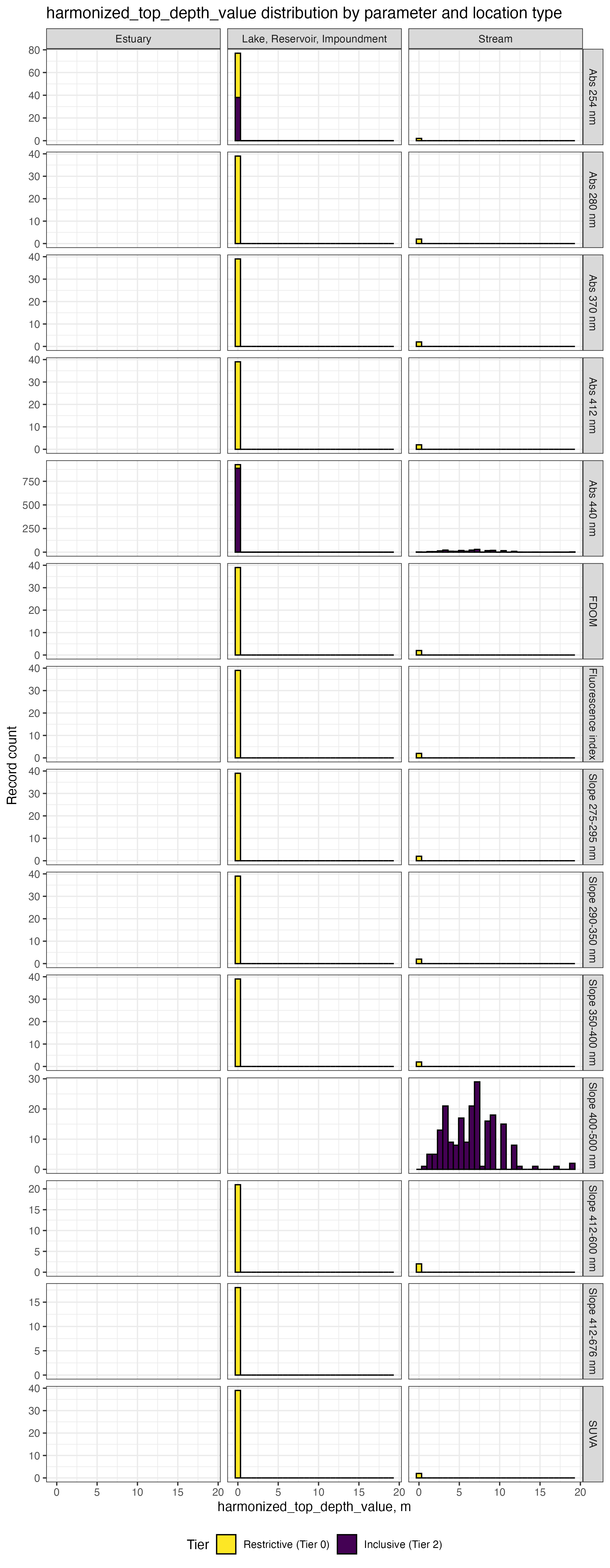

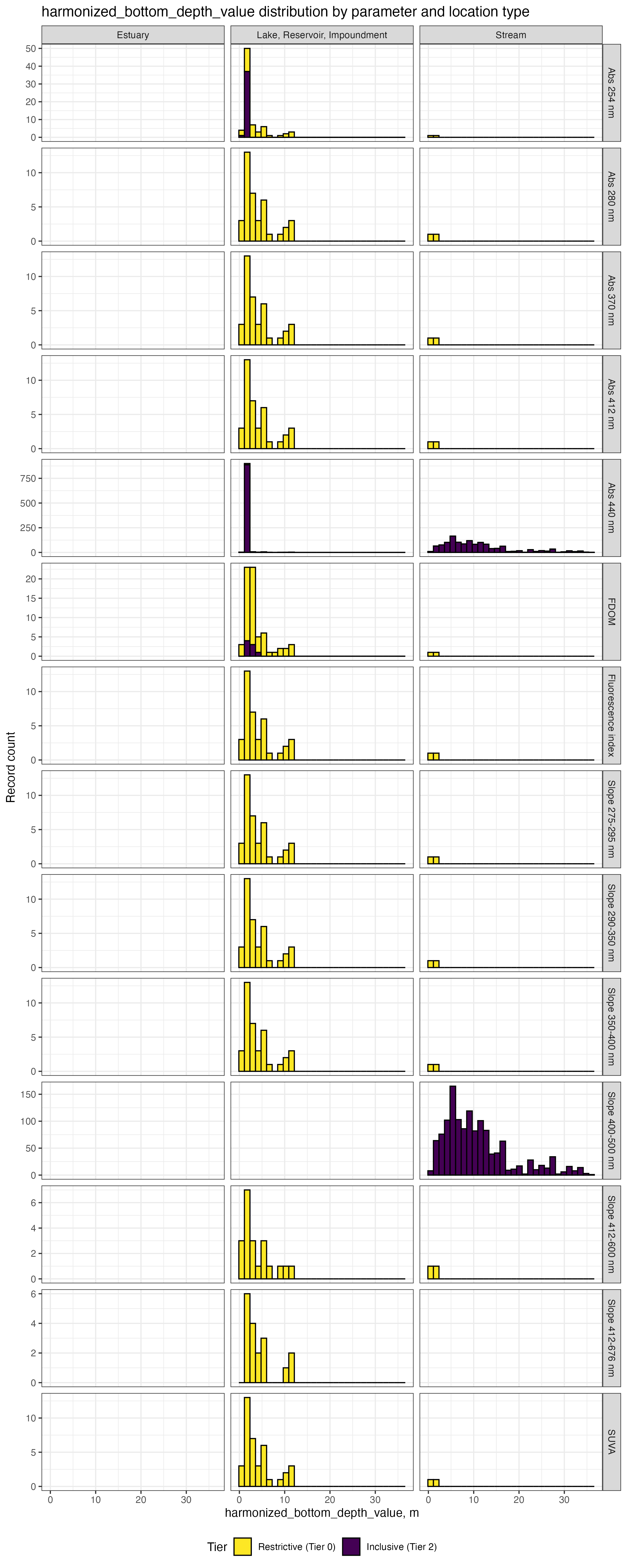

9.2.8 Clean depth data

The next harmonization step cleans the four depth-related columns obtained from the WQP. The details behind this step are covered in the Depth flags section of the Tiering, flagging, and quality control philosophy chapter.

This should not result in a change in rows, but we still check: 0 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.9 Filter and tier methods

We next review information related to the analytical methods, sample fraction, and result units for each record to construct hierarchical tiers as described in the Method tiering section of the Tiering, flagging, and quality control philosophy chapter.

In preparation for tiering, we check the ResultAnalyticalMethod.MethodName column for names that indicate non-CDOM measurements.

Finally, we group the data into three tiers as described in Tiering, flagging, and quality control philosophy. Broadly, these tiers are:

Tier	Name	Description	CDOM Details
0	Restrictive	Data that are verifiably self-similar across organizations and time-periods and can be considered highly reliable and interoperable	Has appropriate (and consistent) information in CharacteristicName, methods columns, and ResultMeasure.MeasureUnitCode. ResultSampleFractionText is filtered
1	Narrowed	Data that we have good reason to believe are self-similar, but for which we can’t verify full interoperability across data providers	There is a mismatch in information, e.g., between the methods columns
2	Inclusive	Data that are assumed to be reliable and are harmonized to our best ability given the information available from the data provider. This tier includes NA or non-resolvable descriptions for the analytical method, which often make up the majority of methods descriptions for any given parameter	ResultSampleFractionText is reported as total or important information is missing from one or more relevant columns

At this point we create a file (in/cdom/cdom_tiering_record.csv) that contains a record of how specific method text was tiered and how many row counts corresponded to each method. This file is also included as an interactive HTML table below, in order to illustrate how the specifics of each tiering decision in the table above are carried out.

Code

tiering_record %>%
kable() %>%
  kable_paper() %>%
  scroll_box(width = "750px", height = "500px")

parameter	CharacteristicName	ResultAnalyticalMethod.MethodName	USGSPCode	ResultAnalyticalMethod.MethodIdentifier	ResultAnalyticalMethod.MethodIdentifierContext	ResultMeasure.MeasureUnitCode	ResultSampleFractionText	tier	min_value	max_value	n
SUVA	UV 254	Computation by NWIS algorithm	63162	ALGOR	USGS	L/mgDOC*m	Dissolved	0	0.0000000	1.980000e+02	37767
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm, Supor (NWQL)	50624	UV006	USGS	units/cm	Dissolved	0	0.7000000	1.260000e+02	12301
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm, GFF (NWQL)	50624	UV005	USGS	units/cm	Dissolved	0	1.0000000	6.320000e+02	12301
Absorbance at 280 nm	Absorbance at 280 nanometers	UV Absorb, 280 nm, Supor (annon)	61726	UV002	USGS	units/cm	Dissolved	0	0.2000000	9.810000e+01	12272
Absorbance at 280 nm	Absorbance at 280 nanometers	UV Absorb, 280 nm, GFF (NWQL)	61726	UV007	USGS	units/cm	Dissolved	0	0.7000000	4.950000e+02	12221
Absorbance at 254 nm	UV 254	UV absorbance, wf, 254 nm	50624	UV008	USGS	units/cm	Dissolved	0	0.0000000	1.905000e+02	6856
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm,GFF (USGS-NYL)	50624	UV019	USGS	units/cm	Dissolved	0	0.3000000	1.680000e+02	5991
Absorbance at 254 nm	UV 254	NA	50624	NA	NA	units/cm	Dissolved	0	0.0000000	2.140000e+02	4980
SUVA	UV 254	SUVA, wf, calculation	63162	UV003	USGS	L/mgDOC*m	Dissolved	0	0.1000000	1.000000e+01	4759
Absorption spectral slope, 275 to 295 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32300	ABS02	USGS	None	Dissolved	0	0.0077000	2.840000e-02	2680
Absorbance at 280 nm	Absorbance at 280 nanometers	Absorbance, 200 to 800 nm	32296	ABS01	USGS	AU/cm	Dissolved	0	0.0700000	1.135000e+02	2678
Absorbance at 370 nm	Absorbance at 370 nanometers	Absorbance, 200 to 800 nm	32297	ABS01	USGS	AU/cm	Dissolved	0	0.0000000	2.369000e+01	2676
Absorption spectral slope, 290 to 350 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32301	ABS02	USGS	None	Dissolved	0	0.0000000	2.770000e-02	2670
Absorption spectral slope, 350 to 400 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32302	ABS02	USGS	None	Dissolved	0	0.0071000	4.930000e-02	2662
Absorbance at 440 nm	Absorbance at 440 nm	Absorbance, 200 to 800 nm	32299	ABS01	USGS	AU/cm	Dissolved	0	0.0500000	8.470000e+00	2639
Absorbance at 412 nm	Absorbance at 412 nm	Absorbance, 200 to 800 nm	32298	ABS01	USGS	AU/cm	Dissolved	0	0.0500000	1.094000e+01	2629
Fluorescence index	Fluorescence index	Fluorescence scan, 250-620 nm	32312	FL020	USGS	None	Dissolved	0	1.1340000	2.171000e+00	2476
FDOM	Fluorescence, excitation 300 emission 390	Fluorescence scan, 250-620 nm	32309	FL020	USGS	RU	Dissolved	0	0.0030000	5.971000e+00	2476
FDOM	Fluorescence, excitation 340 emission 440	Fluorescence scan, 250-620 nm	52901	FL020	USGS	RU	Dissolved	0	0.0010000	7.140000e+00	2474
FDOM	Fluorescence, excitation 370 emission 460	Fluorescence scan, 250-620 nm	52902	FL020	USGS	RU	Dissolved	0	0.0010000	5.260000e+00	2419
FDOM	Fluorescence, excitation 260 emission 450	Fluorescence scan, 250-620 nm	32304	FL020	USGS	RU	Dissolved	0	0.0096000	1.502000e+01	2379
FDOM	Fluorescence, excitation 390 emission 510	Fluorescence scan, 250-620 nm	32307	FL020	USGS	RU	Dissolved	0	0.0015000	3.236000e+00	2338
FDOM	Fluorescence, excitation 280 emission 370	Fluorescence scan, 250-620 nm	32310	FL020	USGS	RU	Dissolved	0	0.0117000	5.096000e+00	2319
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm, silver (NWQL)	50624	UV004	USGS	units/cm	Dissolved	0	0.1000000	1.430000e+02	1990
SUVA	UV 254	NA	63162	NA	NA	L/mgDOC*m	Dissolved	0	0.3000000	6.300000e+00	1809
FDOM	Fluorescence, excitation 275 emission 340	Fluorescence scan, 250-620 nm	32311	FL020	USGS	RU	Dissolved	0	0.0026000	3.517000e+00	1713
Absorbance at 280 nm	Absorbance at 280 nanometers	UV Absorb, 280 nm,silver (annon)	61726	UV001	USGS	units/cm	Dissolved	0	0.1000000	9.930000e+06	1697
FDOM	Colored dissolved organic matter (CDOM)	Colorized Dissolved Organic Matter	NA	FLUORO	COEOMAHA_WQX	ug/L	NA	2	10.0000000	2.680000e+02	1683
Absorbance at 254 nm	Specific UV Absorbance at 254 nm	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	#/cm	Dissolved	0	0.0008584	6.520000e+01	1577
FDOM	Colored dissolved organic matter (CDOM)	Turner Designs Trilogy Fluorometer with CDOM specific excitation/emission filters for monitoring CDOM in natural waters	NA	TurnerDesigns-CDOM	31DELRBC_WQX	RFU	Dissolved	2	472.5600000	9.261500e+03	1557
Absorption spectral slope, 412 to 676 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32303	ABS02	USGS	None	Dissolved	0	0.0029000	2.920000e-02	1509
FDOM	Colored dissolved organic matter (CDOM)	NA	32295	NA	NA	ug/l QSE	Dissolved	0	0.0000000	3.230000e+04	1449
Absorbance at 440 nm	Absorbance at 440 nm	Dissolved Organic Matter Absorption Coefficient (Gelbstoff)	NA	L01~CDOM_440	CBP_WQX	per m	NA	2	0.1228000	2.246920e+01	1414
Absorption spectral slope, 400 to 500 nm	Absorbance at 440 nm	Slope Of CDOM Absorption Coefficient Spectrum (400 To 500 Nm)	NA	L01~CDOM_SLOPE	CBP_WQX	nm-1	NA	2	0.0075000	2.580000e-02	1414
FDOM	Colored dissolved organic matter (CDOM)	NA	32322	NA	NA	RFU	Total	2	0.0000000	4.060000e+03	1345
Absorption spectral slope, 412 to 600 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32331	ABS02	USGS	None	Dissolved	0	0.0030000	1.700000e-02	973
Absorbance at 254 nm	UV 254	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	units/cm	Total	2	1.6000000	1.460000e+02	821
SUVA	Specific UV Absorbance at 254 nm	UV absorbance, 254 nm	NA	UV absorbance, 254 nm	YRITWC	L/mg-cm	Dissolved	0	0.0000000	1.296472e+05	816
Absorbance at 254 nm	UV 254	UV absorbance, 254 nm	NA	UV absorbance, 254 nm	YRITWC	nm	Dissolved	2	0.0000000	7.151227e+02	770
Absorbance at 440 nm	Absorbance at 440 nm	Gross Alpha and Beta Activity in Water	NA	00-01	USEPA	units/cm	Total	2	0.1000000	2.130000e+01	719
FDOM	Fluorescence, excitation 275 emission 304	Fluorescence scan, 250-620 nm	32305	FL020	USGS	RU	Dissolved	0	0.0041000	1.075000e+00	699
Absorbance at 254 nm	UV 254	Absorbance, 254 nm, wf (SM5910)	50624	UV011	USGS	units/cm	Dissolved	0	0.0000000	3.510000e+01	634
FDOM	Colored dissolved organic matter (CDOM)	YSI EXO fluorometer, 365/480 nm	32295	FL017	USGS	ug/l QSE	Dissolved	0	0.1000000	2.117000e+02	631
Absorbance at 254 nm	UV 254	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	units/cm	Dissolved	0	1.5000000	3.880000e+01	400
FDOM	Colored dissolved organic matter (CDOM)	NA	32289	NA	NA	mg/l	Dissolved	2	670.0000000	2.510000e+03	385
Absorbance at 440 nm	Absorbance at 440 nm	Determination of UV Absorbance at 440 nm in Water, by MDH modified method	NA	MDH055	MNPCA	units/cm	Total	2	0.1000000	8.150000e+00	324
Absorbance at 254 nm	UV 254	UV Absorbance at 254 nm	NA	UVA_UV_254	11NPSWRD_WQX	#/cm	Dissolved	0	1.3000000	1.840000e+01	319
FDOM	Colored dissolved organic matter (CDOM)	Turner Designs fluoro.,365/470nm	32295	FL013	USGS	ug/l QSE	Dissolved	0	37.9000000	1.087000e+03	207
Absorbance at 254 nm	UV 254	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	units/cm	NA	2	2.8000000	1.370000e+02	194
Fluorescence index	Fluorescence index	Fluorescence Index	32312	ABS06	USGS	None	Dissolved	2	1.0000000	2.000000e+00	187
FDOM	Fluorescence, excitation 260 emission 450	Spectrometry - 5 x 2 matrix scan	32304	ABS04	USGS	RU	Dissolved	0	0.0480000	2.452000e+00	187
FDOM	Fluorescence, excitation 275 emission 340	Spectrometry - 5 x 2 matrix scan	32311	ABS04	USGS	RU	Dissolved	0	0.0120000	6.921000e-01	187
FDOM	Fluorescence, excitation 280 emission 370	Spectrometry - 5 x 2 matrix scan	32310	ABS04	USGS	RU	Dissolved	0	0.0190000	1.048000e+00	187
FDOM	Fluorescence, excitation 300 emission 390	Spectrometry - 5 x 2 matrix scan	32309	ABS04	USGS	RU	Dissolved	0	0.0220000	1.218000e+00	187
FDOM	Fluorescence, excitation 340 emission 440	Spectrometry - 5 x 2 matrix scan	32332	ABS04	USGS	RU	Dissolved	0	0.0290000	1.312000e+00	187
FDOM	Fluorescence, excitation 370 emission 460	Spectrometry - 5 x 2 matrix scan	32333	ABS04	USGS	RU	Dissolved	0	0.0200000	1.105000e+00	187
FDOM	Fluorescence, excitation 390 emission 510	Spectrometry - 5 x 2 matrix scan	32307	ABS04	USGS	RU	Dissolved	0	0.0110000	6.395000e-01	187
Absorbance at 412 nm	Absorbance at 412 nm	UV absorbance, wf, 412 nm	66700	UV010	USGS	AU/cm	Dissolved	0	0.4000000	1.570000e+01	165
Absorbance at 254 nm	UV 254	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	units/cm	Dissolved	0	18.4000000	2.930000e+02	165
FDOM	Colored dissolved organic matter (CDOM)	NA	32330	NA	NA	mg/l	Total	2	120.0000000	2.964000e+04	154
SUVA	Specific UV Absorbance at 254 nm, corrected for Fe	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	L/mg-cm	Dissolved	0	246.0000000	4.510000e+02	153
FDOM	Colored dissolved organic matter (CDOM)	NA	NA	NA	NA	ug/L	NA	2	19.0714216	1.065636e+02	130
Absorbance at 440 nm	Absorption coefficient at 440 nm	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	#/cm	NA	2	0.2053158	1.745181e+01	123
SUVA	Specific UV Absorbance at 254 nm	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	L/mg-cm	NA	2	1.2248924	4.844491e+00	123
FDOM	Fluorescence, excitation 420 emission 460	Fluorescence scan, 250-620 nm	32355	FL020	USGS	RU	Dissolved	0	0.0215000	5.180000e-01	119
Absorbance at 254 nm	UV Absorption, relative conc. of organic constituents	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	units/cm	Total	2	9.0800000	1.460000e+02	97
Absorbance at 254 nm	Specific UV Absorbance at 254 nm	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	units/cm	Total	2	0.0300000	2.514000e+01	95
FDOM	Fluorescence, excitation 275 emission 304	Spectrometry - 5 x 2 matrix scan	32305	ABS04	USGS	RU	Dissolved	0	0.0186000	2.625000e-01	93
Absorption spectral slope, 412 to 676 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32303	ABS02	USGS	NA	Dissolved	0	0.0001329	1.718640e-02	85
Absorbance at 280 nm	Absorbance at 280 nanometers	NA	61726	NA	NA	units/cm	Dissolved	0	0.3000000	6.780000e+01	78
Absorbance at 254 nm	UV 254	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	None	NA	2	0.0120000	2.270000e-01	73
SUVA	UV Absorption, relative conc. of organic constituents	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	None	NA	2	1.6000000	4.400000e+00	73
FDOM	Fluorescence, excitation 275 emission 304	Spectrometry - 5 x 2 matrix scan	32305	ABS04	USGS	NA	Dissolved	2	0.0017291	2.483674e-01	73
Absorbance at 440 nm	Colored dissolved organic matter (CDOM)	CDOM absorption (440nm)	NA	CDOM absorption	RTI	m	NA	2	0.0793651	2.813000e+01	58
FDOM	Colored dissolved organic matter (CDOM)	YSI EXO, 365/480/80 nm	32295	FL029	USGS	ug/l QSE	Dissolved	0	5.2500000	9.320000e+01	54
FDOM	Colored dissolved organic matter (CDOM)	YSI EXO, 365/480/80 nm	32322	FL029	USGS	RFU	Total	2	1.7500000	2.448000e+01	48
Absorbance at 440 nm	Absorbance at 440 nm	Gross Alpha and Beta Activity in Water	NA	00-01	USEPA	NA	Total	2	0.0000073	4.830000e-04	41
Absorbance at 440 nm	Absorbance at 440 nm	Determination of UV Absorbance at 440 nm in Water, by MDH modified method	NA	MDH055	MNPCA	NA	Total	2	0.0000239	3.582000e-03	38
Absorbance at 412 nm	Absorbance at 412 nm	UV absorbance, wf, 412 nm	66700	UV010	USGS	NA	Dissolved	2	0.0000468	5.267600e-03	34
Absorbance at 254 nm	UV 254	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	units/cm	Total	2	4.5500000	4.280000e+01	34
Absorption spectral slope, 350 to 400 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32302	ABS02	USGS	NA	Dissolved	0	0.0000533	8.895900e-03	18
FDOM	Fluorescence, excitation 275 emission 304	Fluorescence scan, 250-620 nm	32305	FL020	USGS	NA	Dissolved	2	0.0009441	2.497560e-02	18
Absorption spectral slope, 290 to 350 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32301	ABS02	USGS	NA	Dissolved	0	0.0000715	7.584400e-03	14
Absorbance at 254 nm	UV 254	Determination of UV Absorbance at 440 nm in Water, by MDH modified method	NA	MDH055	MNPCA	None	Dissolved	2	1.0000000	1.000000e+00	11
Absorption spectral slope, 412 to 600 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32331	ABS02	USGS	NA	Dissolved	0	0.0002522	2.449000e-03	10
Absorbance at 254 nm	UV 254	Computation by NWIS algorithm	63162	ALGOR	USGS	NA	Dissolved	2	0.0091553	7.818130e-02	8
Absorbance at 254 nm	UV 254	5910 B ~ UV - Absorbing Organic Compounds	NA	5910-B	APHA	units/cm	None	2	0.0000000	3.540000e+00	6
FDOM	Colored dissolved organic matter (CDOM)	YSI EXO fluorometer, 365/480 nm	32322	FL017	USGS	RFU	Total	2	0.0600000	1.266000e+01	5
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm, Supor (NWQL)	50624	UV006	USGS	NA	Dissolved	2	0.0000515	1.520700e-03	5
Absorbance at 280 nm	Absorbance at 280 nanometers	UV Absorb, 280 nm, Supor (annon)	61726	UV002	USGS	NA	Dissolved	2	0.0001215	1.596300e-03	5
Absorption spectral slope, 275 to 295 nm	Absorption spectral slope (Sag)	Sag, specified wavelength range	32300	ABS02	USGS	NA	Dissolved	0	0.0002761	1.240770e-02	4
FDOM	Colored dissolved organic matter (CDOM)	NA	32314	NA	NA	ug/l QSE	Dissolved	2	49.8000000	1.210000e+02	3
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm, silver (NWQL)	50624	UV004	USGS	NA	Dissolved	2	0.0014522	1.645300e-03	2
Fluorescence index	Fluorescence index	Fluorescence scan, 250-620 nm	32312	FL020	USGS	NA	Dissolved	0	0.0524613	2.471460e-01	2
Absorbance at 280 nm	Absorbance at 280 nanometers	UV Absorb, 280 nm, GFF (NWQL)	61726	UV007	USGS	NA	Dissolved	2	0.0004394	1.803810e-02	2
Absorbance at 254 nm	UV 254	UV Absorb, 254 nm, GFF (NWQL)	50624	UV005	USGS	NA	Dissolved	2	0.0010575	1.838950e-02	2
Absorbance at 254 nm	UV 254	NA	50624	NA	NA	NA	Dissolved	2	0.0002493	2.774000e-04	2
Absorbance at 440 nm	Absorbance at 440 nm	Absorbance, 200 to 800 nm	32299	ABS01	USGS	NA	Dissolved	2	0.0006541	1.257400e-03	2
Absorbance at 254 nm	UV 254	UV - Absorbing Organic Compounds	NA	5910-B	KAWNATON_WQX	cm	NA	2	12.4000000	1.240000e+01	1
Absorbance at 280 nm	Absorbance at 280 nanometers	UV Absorb, 280 nm,silver (annon)	61726	UV001	USGS	NA	Dissolved	2	0.0002786	2.786000e-04	1
Absorbance at 440 nm	Absorbance at 440 nm	Determination of UV Absorbance at 440 nm in Water	NA	USEPA 415.3_440	MNPCA	#/cm	Total	2	4.3300000	4.330000e+00	1
SUVA	Specific UV Absorbance at 254 nm	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	L/mg-cm	Total	2	258.2000000	2.582000e+02	1
SUVA	Specific UV Absorbance at 254 nm, corrected for Fe	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	L/mg-cm	Total	2	238.5000000	2.385000e+02	1
Absorbance at 254 nm	UV 254	Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water	NA	415.3	USEPA	#/cm	Total	2	22.3300000	2.233000e+01	1
Absorbance at 280 nm	Absorbance at 280 nanometers	NA	61726	NA	NA	NA	Dissolved	0	0.0000386	3.860000e-05	1
Absorbance at 254 nm	UV 254	UV absorbance, wf, 254 nm	50624	UV008	USGS	NA	Dissolved	2	0.0001090	1.090000e-04	1
Absorbance at 280 nm	Absorbance at 280 nanometers	Absorbance, 200 to 800 nm	32296	ABS01	USGS	NA	Dissolved	2	0.0025234	2.523400e-03	1
Absorbance at 370 nm	Absorbance at 370 nanometers	Absorbance, 200 to 800 nm	32297	ABS01	USGS	NA	Dissolved	2	0.0014879	1.487900e-03	1

The above process drops 0 rows, leaving 175.7 thousand remaining.

Bar plot showing the row count update for the current harmonization step.

9.2.10 Flag based on field methods

Next, we use the field_flag column to flag records based on the type of sampling equipment that was used:

• field_flag = 0 when discrete sampling methods were used. Indicated by detection of “grab”, “bucket”, “point”, “kemmerer”, “van dorn”, “bailer”, or “bottle” in SampleCollectionEquipmentName
• field_flag = 1 when integrated sampling methods were used. Indicated by detection of “integrated”, “multiple”, or “pump” in SampleCollectionEquipmentName
• field_flag = 2 for all other records

No records should be removed by this process and so there are 0 rows dropped leaving 175.7 thousand remaining in the harmonized CDOM dataset.

Bar plot showing the row count update for the current harmonization step.

9.2.11 Miscellaneous flag

Next, we populate the miscellaneous flag (misc_flag) column. The miscellaneous flag is used in this dataset to mark measurements that fall outside published maximum records based on a review of the relevant literature. We do this instead of filtering the records out, but a depth-related filter still occurs in the next harmonization step.

For this flag column, values are as follows: 0 = does not exceed published range, 1 = below published minimum, and 2 = above published maximum. Absorption spectral slope parameters, SUVA, and Fluorescence index are checked for values below minimum or above maximum published records, while the rest of the parameter options are just checked for values above published maximums. We use the absolute value of absorption spectral slope when testing against thresholds.

Thresholds used and citations are below, followed by a table with counts by parameters, unit, and flag value:

Parameter	Units	Min value	Max value	Source
Absorbance at 254 nm	AU/m	-	450	Yates et al. 2023
Absorbance at 280 nm	AU/m	-	36.1	Korak and McKay 2024
Absorbance at 370 nm	AU/m	-	11	Korak and McKay 2024
Absorbance at 412 nm	AU/m	-	14	We use the threshold for 440 nm (below) as a conservative estimate
Absorbance at 440 nm	AU/m	-	14	Brezonik et al. 2019
Absorption spectral slope (multiple)	nm-1	0.0026	0.0473	Korak and McKay 2024
FDOM	RU	-	4.38	Korak and McKay 2024
FDOM	ug/L, ug/l QSE	-	84.4	Avouris et al. 2025
Fluorescence index	None	1.31	2.18	Korak and McKay 2024
SUVA	L/mgDOC*m	0.651	6.83	Korak and McKay 2024

parameter	harmonized_units	misc_flag	n
Absorbance at 254 nm	AU/m	0	49634
Absorbance at 254 nm	AU/m	2	3
Absorbance at 280 nm	AU/m	0	27431
Absorbance at 280 nm	AU/m	2	1525
Absorbance at 370 nm	AU/m	0	2653
Absorbance at 370 nm	AU/m	2	24
Absorbance at 412 nm	AU/m	0	2826
Absorbance at 412 nm	AU/m	2	2
Absorbance at 440 nm	AU/m	0	5347
Absorbance at 440 nm	AU/m	2	12
Absorption spectral slope, 275 to 295 nm	nm-1	0	2681
Absorption spectral slope, 275 to 295 nm	nm-1	1	3
Absorption spectral slope, 290 to 350 nm	nm-1	0	2679
Absorption spectral slope, 290 to 350 nm	nm-1	1	5
Absorption spectral slope, 350 to 400 nm	nm-1	0	2671
Absorption spectral slope, 350 to 400 nm	nm-1	1	8
Absorption spectral slope, 350 to 400 nm	nm-1	2	1
Absorption spectral slope, 400 to 500 nm	nm-1	0	1414
Absorption spectral slope, 412 to 600 nm	nm-1	0	973
Absorption spectral slope, 412 to 600 nm	nm-1	1	10
Absorption spectral slope, 412 to 676 nm	nm-1	0	1543
Absorption spectral slope, 412 to 676 nm	nm-1	1	51
FDOM	RFU	0	2955
FDOM	RU	0	18391
FDOM	RU	2	38
FDOM	ug/L	0	1719
FDOM	ug/L	2	633
FDOM	ug/l QSE	0	2053
FDOM	ug/l QSE	2	291
Fluorescence index	None	0	2628
Fluorescence index	None	1	37
SUVA	L/mgDOC*m	0	43998
SUVA	L/mgDOC*m	1	130
SUVA	L/mgDOC*m	2	1374

No records should be removed by this process and so there are 0 rows dropped leaving 175.7 thousand remaining in the harmonized CDOM dataset.

Bar plot showing the row count update for the current harmonization step.

9.2.12 Remove unrealistic values

Before finalizing the dataset we check for and remove any depths > 592m, the deepest point in a lake in the U.S.

0 rows are removed. The final row count after this is 175.7 thousand.

Bar plot showing the row count update for the current harmonization step.

9.2.13 Aggregate simultaneous records

The final step of CDOM harmonization is to aggregate simultaneous observations.

The aggregation process: Any group of samples determined to be simultaneous are simplified into a single record containing the mean and coefficient of variation (CV) of the group. These can be either true duplicate entries in the WQP or records with non-identical values recorded at the same time and place and by the same organization (field and/or lab replicates/duplicates). The CV can be used to filter the dataset based on the amount of variability that is tolerable to specific use cases. Note, however, that many entries will have a CV that is NA because there are no simultaneous records or 0 because the records are duplicates and all entries have the same harmonized_value.

We identify simultaneous records to aggregate by creating identical subgroups (subgroup_id) from the following columns: parameter, OrganizationIdentifier, MonitoringLocationIdentifier, MonitoringLocationTypeName, ResolvedMonitoringLocationTypeName, ActivityStartDate, ActivityStartTime.Time, ActivityStartTime.TimeZoneCode, harmonized_tz, harmonized_local_time, harmonized_utc, ActivityStartDateTime, harmonized_top_depth_value, harmonized_top_depth_unit, harmonized_bottom_depth_value, harmonized_bottom_depth_unit, harmonized_discrete_depth_value, harmonized_discrete_depth_unit, depth_flag, mdl_flag, approx_flag, greater_flag, tier, field_flag, misc_flag, harmonized_units. This selection limits the columns included in the final dataset, but we also provide a copy of the AquaMatch dataset prior to its aggregation (pipeline target p3_cdom_preagg_grouped; available as an RDS file in the data release: AquaMatch_harmonize_WQP/_targets/objects/p3_cdom_preagg_grouped), and include the subgroup_id column, so that users can use the disaggregated data as well and match make joins between dataset versions.

Note: We hold out any records where misc_flag is 1 or 2 from the aggregation step above, and as a result those records are not included in the p3_cdom_preagg_grouped object, nor its RDS export. The records are added back into the final dataset once the aggregation is complete, but they have NA for subgroup_id, harmonized_value_cv, and harmonized_row_count because they are never grouped or aggregated. We do this to allow end users to decide how they want to handle values that exceed published maximums.

The final values are presented in the harmonized_value and harmonized_value_cv columns. The number of rows used per group is recorded in the harmonized_row_count column.

1.6263^{4} rows dropped leaving 159.5 thousand remaining in the final harmonized and aggregated CDOM dataset.

Bar plot showing the row count update for the current harmonization step.

9.2.14 Harmonized CDOM

At this point the harmonization of the CDOM data from the WQP is complete and we export the final dataset for use later in the workflow.

Below are several sets of figures illustrating different qualities of the dataset:

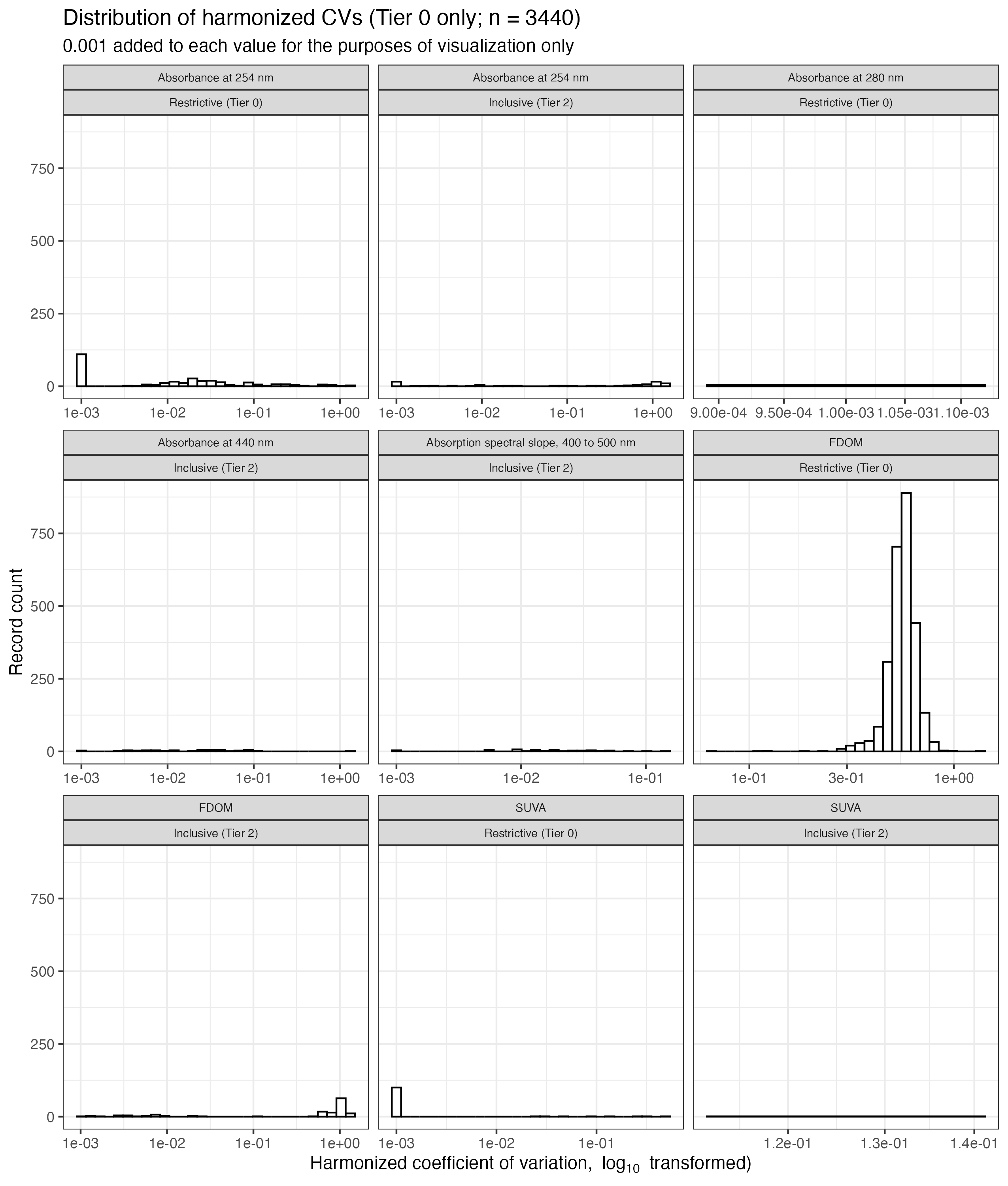

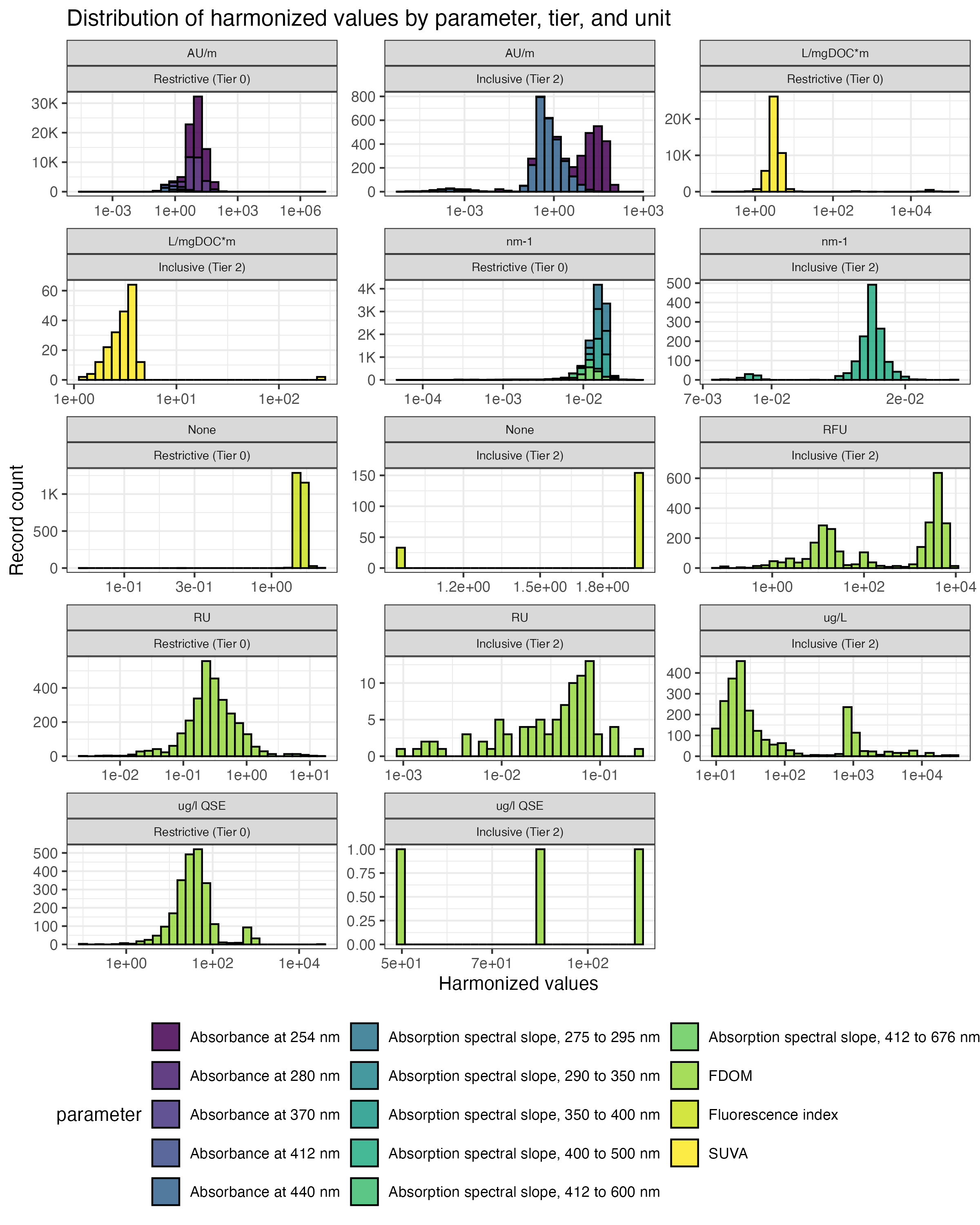

1. Histograms showing the distribution of harmonized measurements (top) and CVs (bottom) broken down by tier after aggregating simultaneous records. There are very few simultaneous records in the dataset, so only a few CVs are produced.

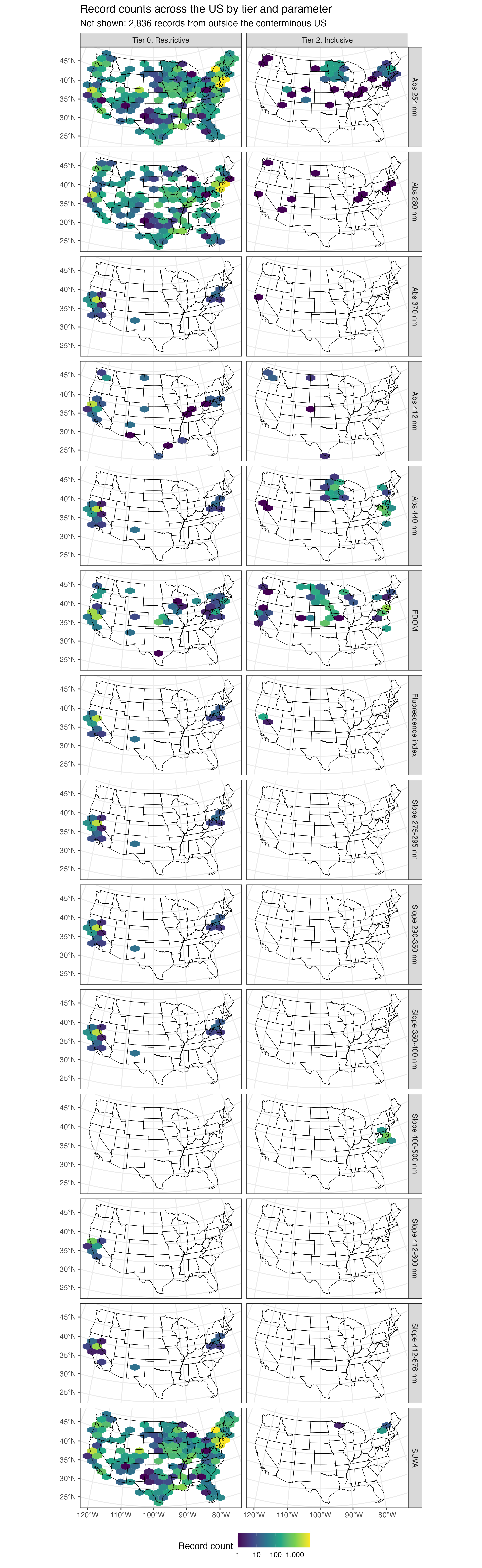

2. Maps showing the geographic distribution of records by tier within the US:

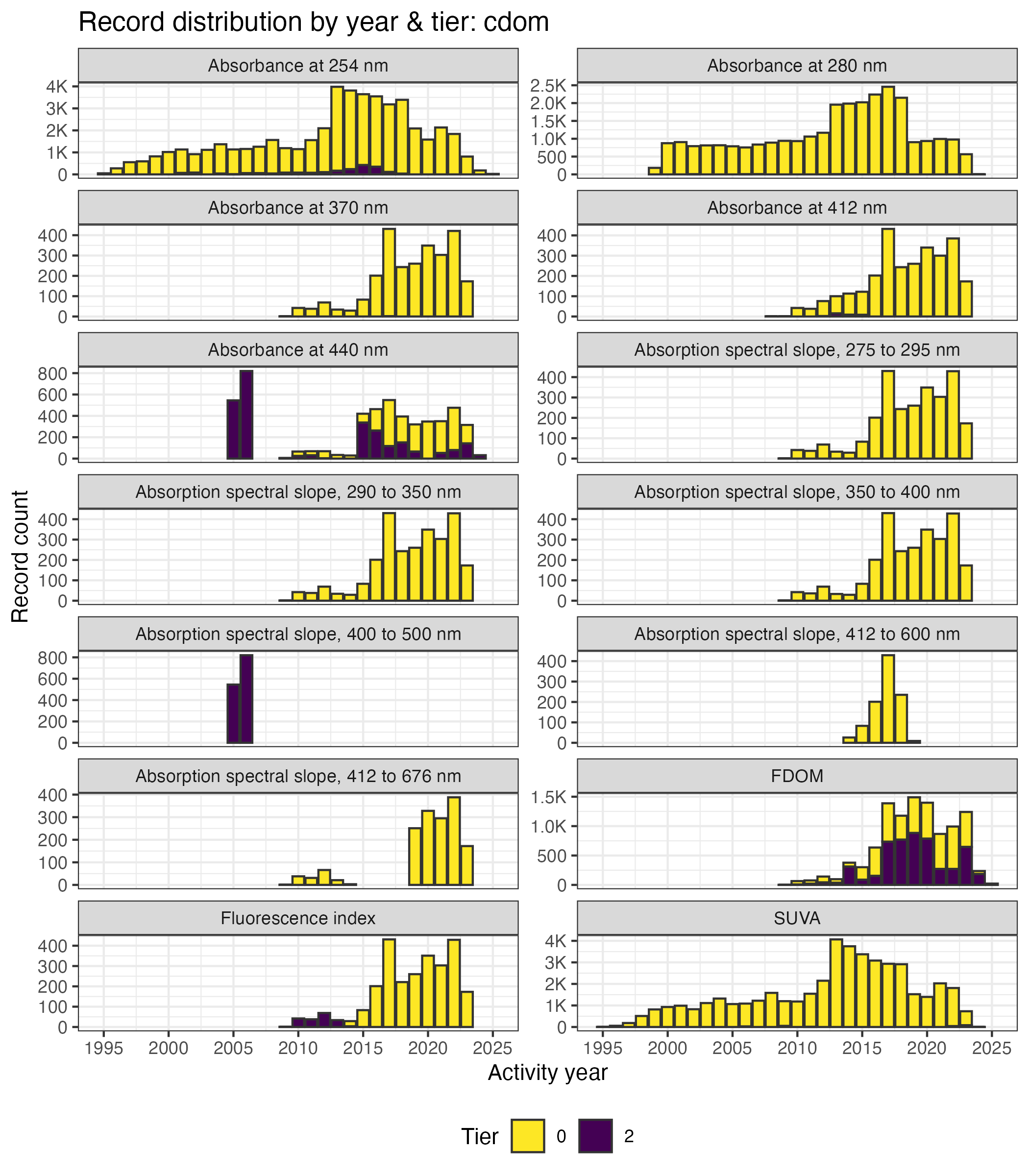

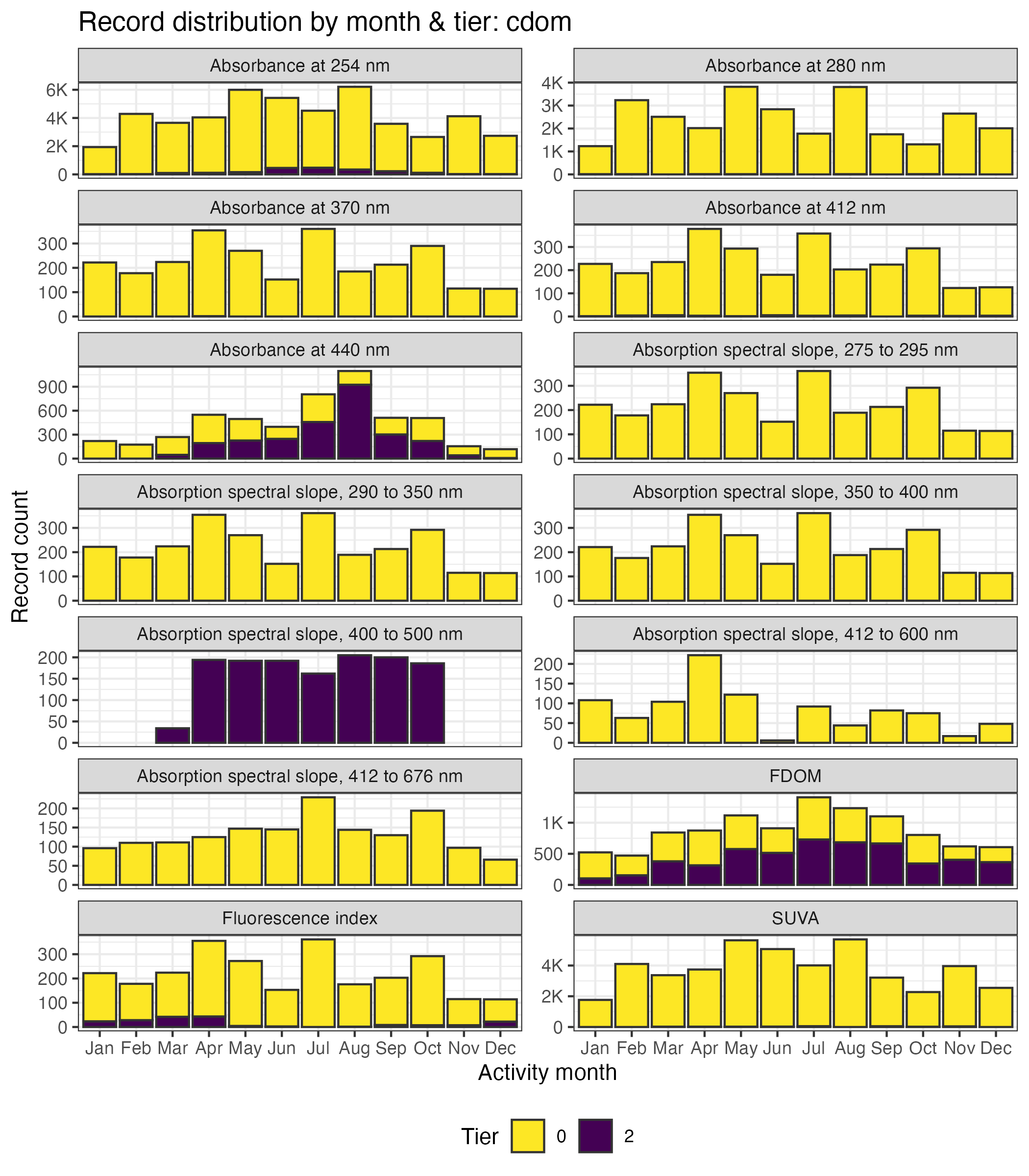

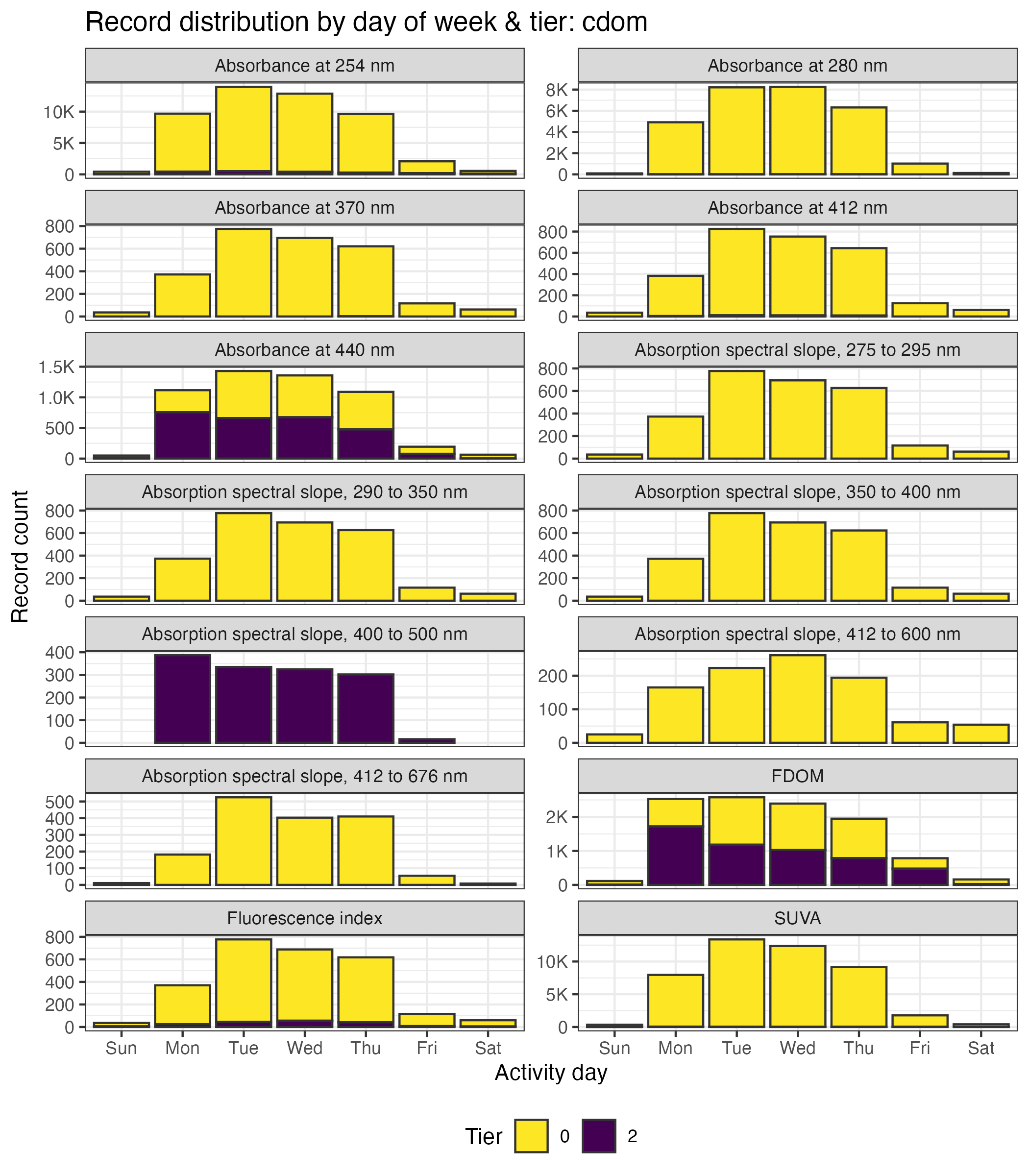

3. Bar charts showing the distribution of values by tier across years, months, and days of the week:

4. Lastly, bar charts showing the distribution of depth values by parameter, location type, and tier:
